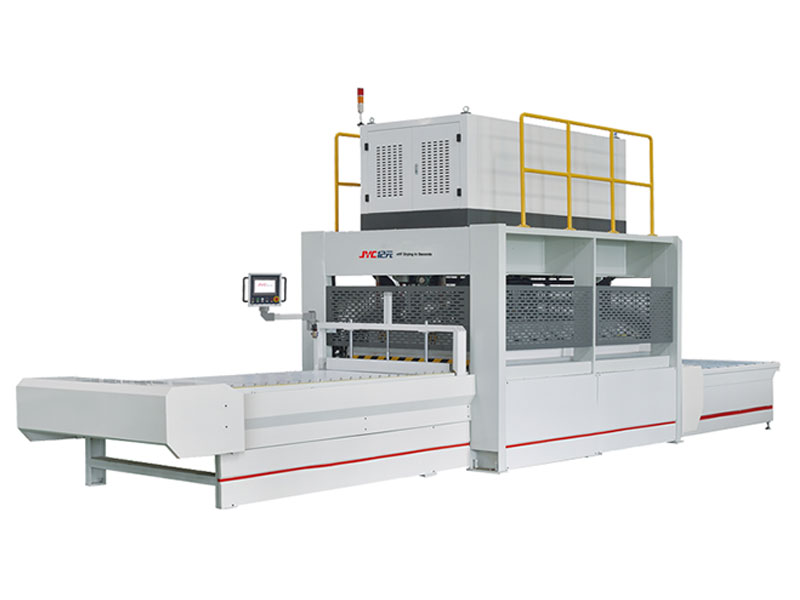

High Frequency Edge Gluer with Conveyor

Application

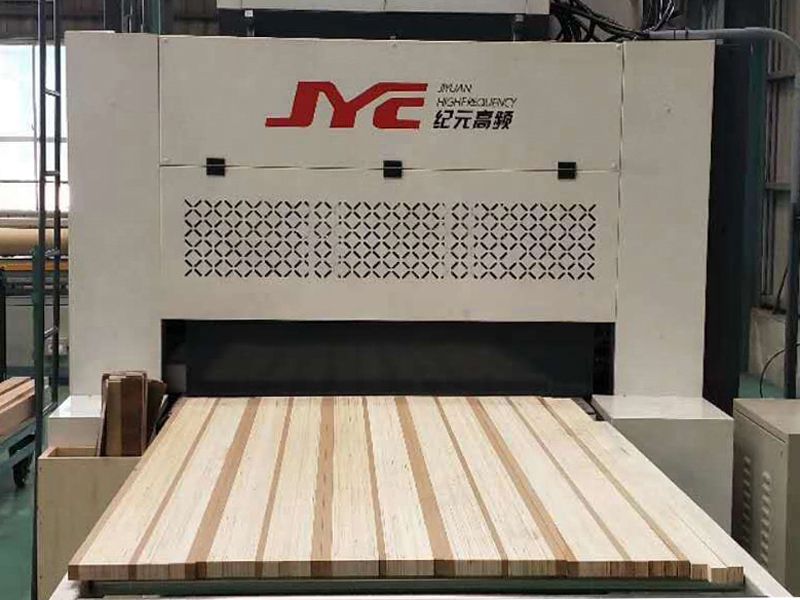

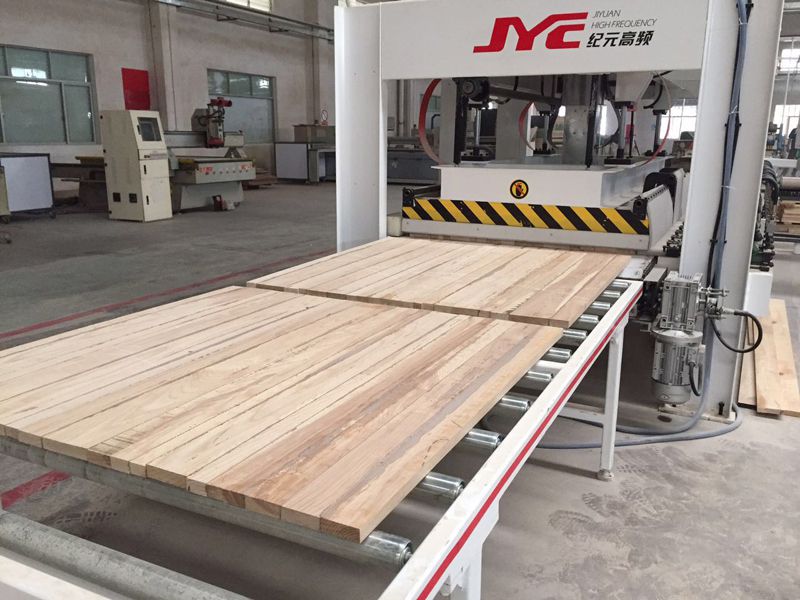

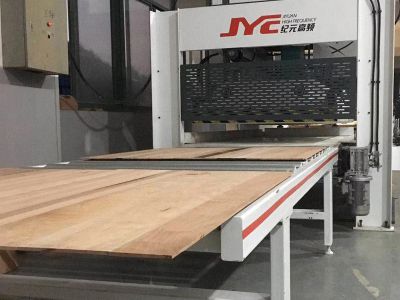

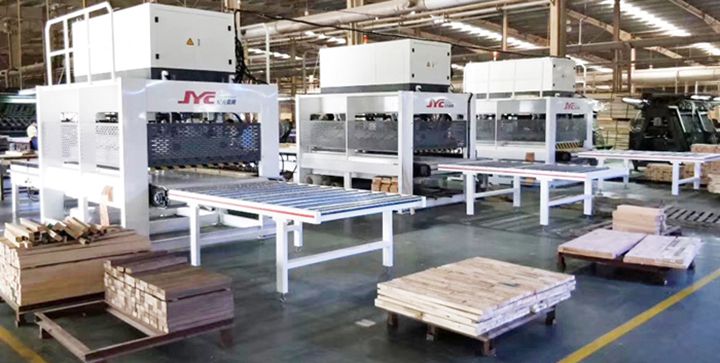

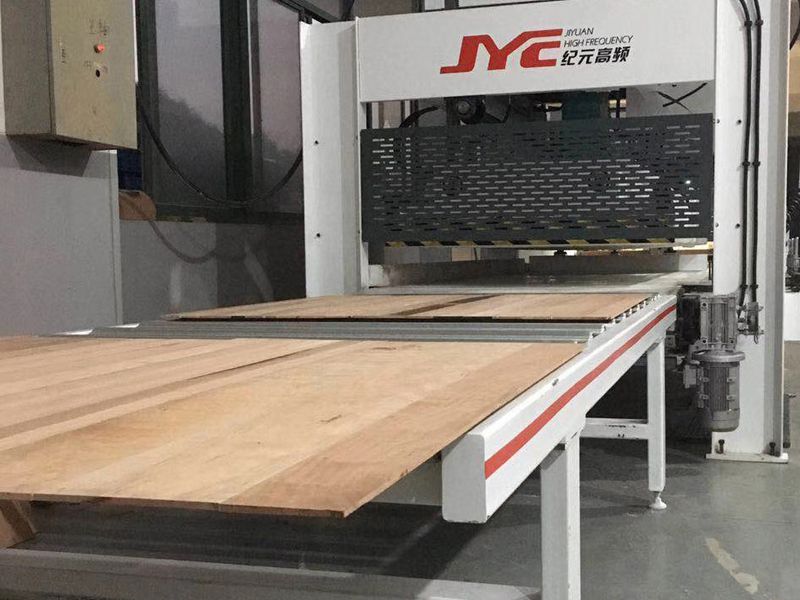

High frequency conveyor edge gluer is applied for board jointing, 90 degrees corner joint, cabinet board joint, door edge banding, L type door pocket line joint.

Benefits
1. Conveyor edge gluer uses convey belt for feeding, ensuring fast speed, saving time and labor.
2. Without gutter between small size boards, put boards quickly and easily.
3. Good applicability, it can be used for long and short size boards.
4. Covered special plate, operators can easily clean glue.
5. Worktable size can be customized.

Specifications
Model GJB2513-L56-JY GJB3213-L68-JY GJB4213-L100-JY GJB5213-L112-JY GJB6210-L140-JY GJB1325-L38-JY
Control PLC, HMI screen, alarm & error display
Worktable size 2500x1300
(mm)
3200x1300
(mm)
4200x1300
(mm)
5200x1300
(mm)
6200x1000
(mm)
1300x2500
(mm)
Max working size 2440x1220
(mm)
3100x1300
(mm)
4100x1220
(mm)
5100x1220
(mm)
6100x980
(mm)
1220x2440
(mm)
Thickness 8mm-80mm
Vertical pressure 20T 20T 40T 40T 50T 20T
Horizontal pressure 36T 48T 60T 72T 90T 18T
HF power 20KW 30KW 40KW 50KW 50KW 20KW
Feeding Conveyer belts/Pushing cart
Feeding speed 15m/min (Adjustable)
Open Vertical lift
Application
