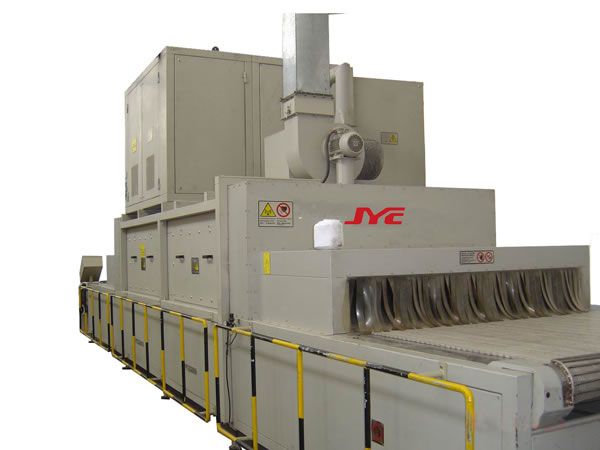

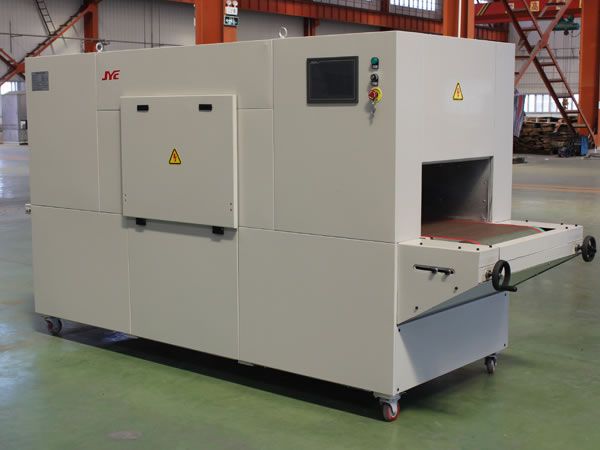

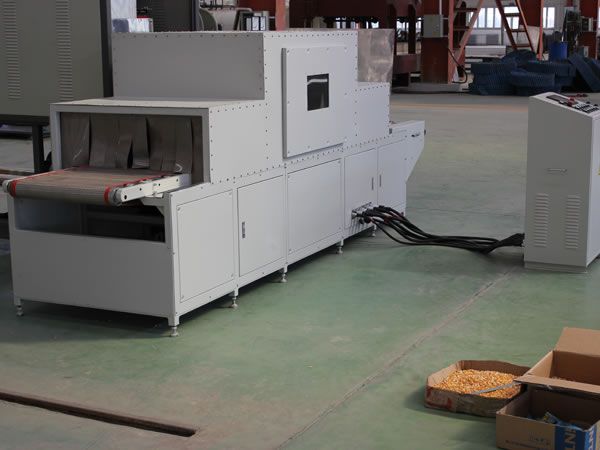

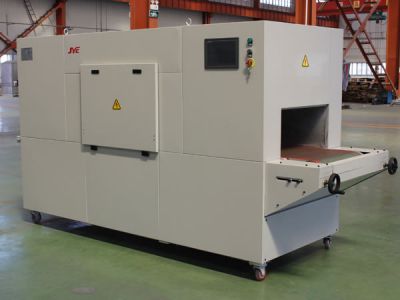

Conveyor Dryer

Our line of conveyor dryer is also known as a radio frequency dryer, shortened to RF dryer. It is mainly applied to the drying of materials. It is also great for killing worms and bacteria in textiles, fruit, vegetables, tea and grains. The belt conveyor drying machine can also achieve automatic control in the production line work.

Characteristics
1. This conveyor dryer can serve as a textile dryer, fruit dryer,food dryer and grain dryer, while enabling materials to be uniformly heated, and allowing sufficient heat exchange. This ensures a high drying strength. It can also save up to 50% more energy than general dryers.
2. The conveyor dryer can be easily adjusted. Feed the layer thickness and traveling speed into the machine along with the total amplitude alteration and you will achieve infinite variable control.
3. An air suction device is specially designed to eliminate steam, which enhances the drying effect.
4. This high frequency dryer can apply a PLC automatic control system with a user friendly touch screen, which ensures convenient and easy operation.
5. It also comes with an auxiliary heating function, using hot winds, which improves heating efficiency and saves time.

Technical Parameters of the Conveyor Dryer

1. Textile Drying

Model GJD-80A-27-JY
Power supply 380V/50Hz/3 Phase/4 Wire
Control system PLC automatic control
Output power 80KW
HF frequency 27.12 MHz
Speed of feeding belt 0-50m/min (Adjustable)
Height of heating chamber 0-250mm(Adjustable)
Length of heating chamber 3,000mm
Width of feeding belt 2,000mm
Overall size 9,600×2,250×2,500mm

2. Grain Worm Killing

Model GJD-6A-27-JY GJD-30A-27-JY
Power supply 380V/50Hz/3 Phase/4 Wire
Control system PLC automatic control
Output power 6KW 30KW
HF frequency 27.12 MHz
Speed of feeding belt 8-10m/min (Adjustable)
Height of heating chamber 0-200mm(Adjustable)
Length of heating chamber 1,260mm 2,000mm
Width of feeding belt 600mm 800mm
Overall size 3,100×1,000×1,650mm 5,200×1,400×2,600mm

3. Food Drying

Model GJD-30A-27-JY GJD-50A-27-JY
Power supply 380V/50Hz/3 Phase/4 Wire
Control system PLC automatic control
Output power 30KW 50KW
HF frequency 27.12 MHz
Speed of feeding belt 8-20m/min (Adjustable)
Height of heating chamber 0-200mm(Adjustable)
Length of heating chamber 2,000mm 2,500mm
Width of feeding belt 800mm 1,000mm
Overall size 5,200×1,400×2,600mm 6,500×1,600×2,600
