Radio Frequency Press

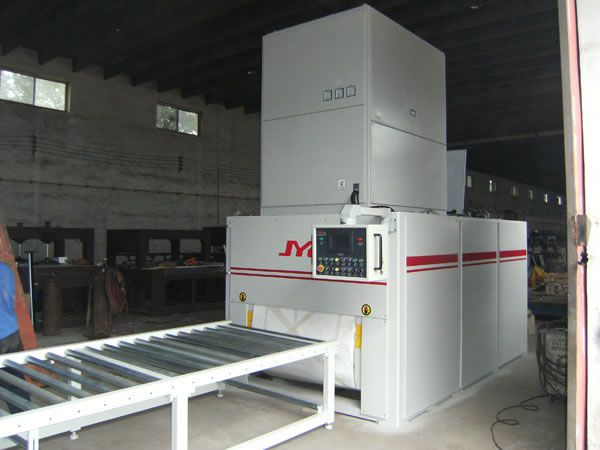

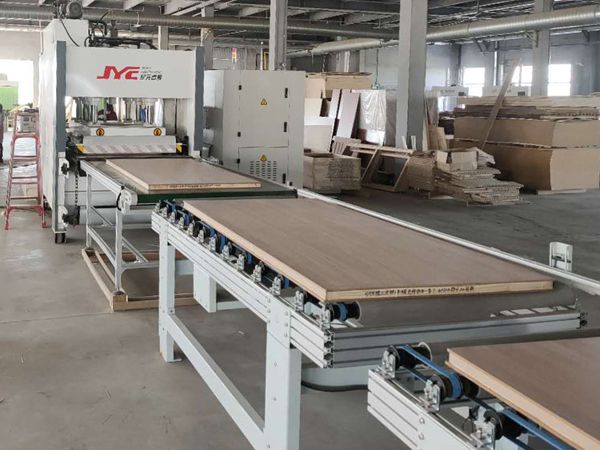

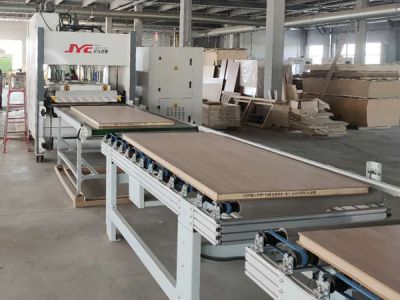

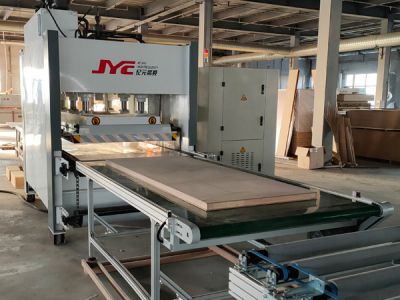

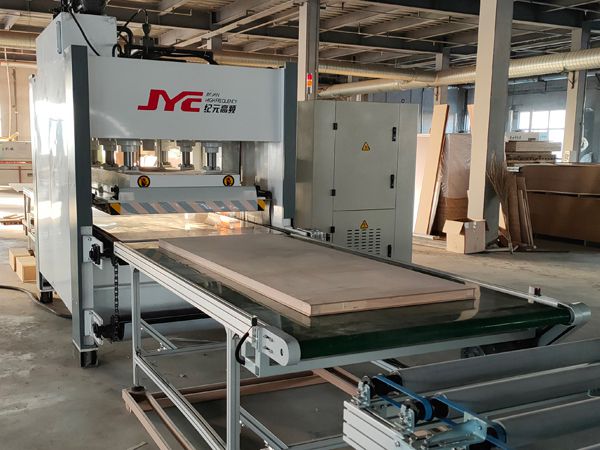

The veneering machine is great for laminating composite door and solid wood. This short cycle veneer press utilizes our brand new, patented technology. This new technology utilizes a radio frequency heating which only heats the glue line without penetrating the core veneer or wood frame, which ensures a high heating efficiency.

Technical Parameters of the Veneering Machine

Model GJT-P-64A-JY GJT-P-100A-JY GJT-PI-100A-JY GJT-PI-200A-JY
Once cycle working time 3-5mins
Feeding type Material auto feeding
Control type PLC auto control, touch screen, fault self checking
Total pressure 64T 100T 100T 200T
Worktable size 2500×1250 mm 3050×1250 mm 2500×1250 mm 3050×1250 mm
Max. thickness 180mm 180mm 180mm 180mm
Hydraulic station 5.5kW

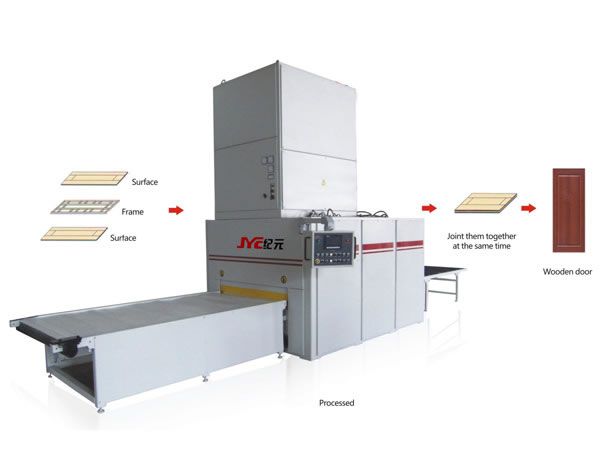

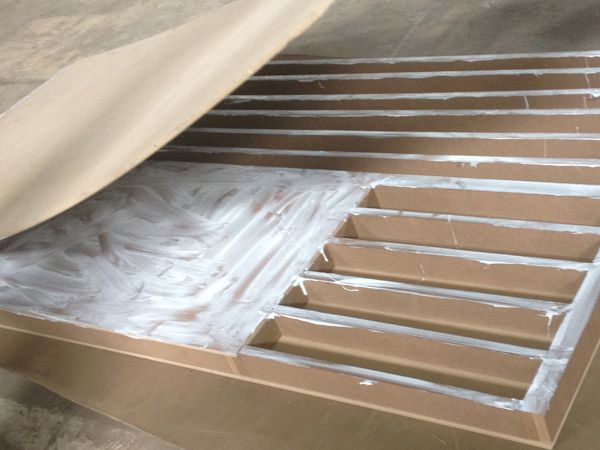

Functions Can attach sandwich products such as: MDF + frame + MDF, plywood + frame + plywood, wood + frame + wood, wood+ wood+ wood etc.
The surface and bottom layer should be 3-6mm thick.

Features of the Veneering Machine
1. Uniform heating

The compact high frequency glue press has a short cycle time and employs efficient high frequency technologies to ensure a uniform heating process, as well as enabling internal and external parts of the glue line to become the same temperature. This enhances the glue curing strength and improves overall product quality.

2. Short cycle and high efficiency
Due to the high radio frequency, the veneering machine comes with extremely fast heating times and a high heating efficiency. The heating time last only about 3 to 5 minutes.

3. Easily controlled heating process
The heating process of this veneering machine is easily controlled. When the power is on, heating starts. Turn the power off, and the heating process stops. Heating times can also be adjusted to obtain better control.

As a leading manufacturer and distributor of woodworking machinery in China, our veneering machine is exactly what you are looking for.

Application

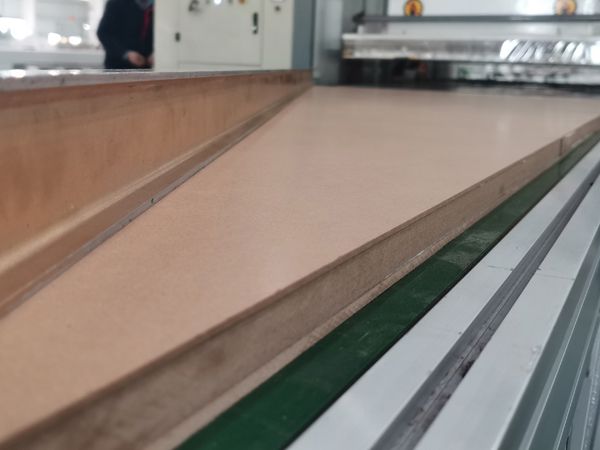

  • MDF+frame+MDF
  • Door surface lamination
  • Lamination
  • Solid wood+solid wood
    + solid wood
