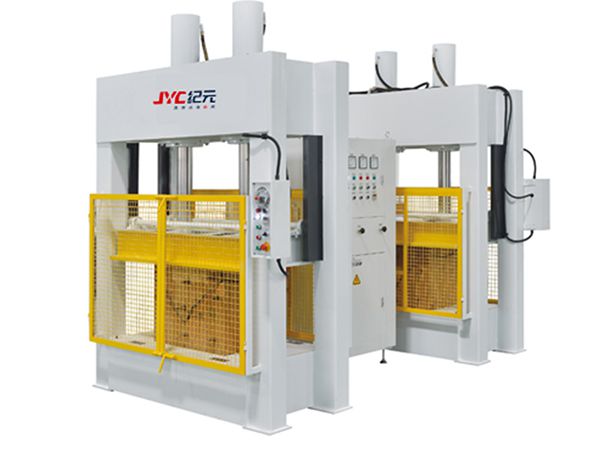

Radio Frequency Press Curved Plywood Press

The curved plywood press is also known by two other names: a radio frequency press, or hot press. It is another one type of Jiyuan's specially designed woodworking machinery. The plywood machinery utilizes a hydraulic system, allowing pressure to come in from a single direction or three different directions, and is suitable for bending wood in a variety of different angles.

For plywood that has basic dimensions, the heating process for curving the plywood takes only 1 to 3 minutes, a process that is both faster and better in comparison to the traditional steam heating method. It is especially useful for thicker wood, showing its superiority with its radio frequency heating. This radio frequency press is widely used for furniture manufacturing, musical instrument production, shoe material processing, and craft making.

As one of our most popular selection of radio frequency press, our curved plywood press can be used to bend different types of plywood, MDF and HDF boards. It is an excellent solution for processing manufacturing curved wood for office furniture, children's furniture, chairs, tea tables, sofa armrests, bed slats, paneled furniture, bed headboards, cabinet door faces and musical instruments such as guitars.

Our curved plywood press was one of our early radio frequency presses that we designed, and is now exported to more than 30 countries around the world.

Characteristics of the Curved Plywood Press
1. The use of high frequency dielectric heating ensures a uniform heating and glue cures quickly in as little as 3 minutes.
2. A wooden mold can easily be made, while still maintaining a low cost, making the radio frequency press great for users who often change the bending shape.
3. This plywood machinery does not need to use a boiler, which means that no smoke or dust are emitted, making it environmentally friendly.
4. Its superiority with the use of radio frequency heating is more apparent the thicker the wood is.
5. Two radio frequency presses share one RF generator. When one press is working, the other can be used to prepare materials, reducing work time and improving efficiency.
6. The finished product features a stable shape that is difficult to deform.
7. The RF press can be customized according to plywood shape and size that needs to be bent.
8. Best-in-class accessories ensure a stable operation.
9. Its user-friendly design makes operation easier.

Applications and Technical Parameters of the Curved Plywood Press

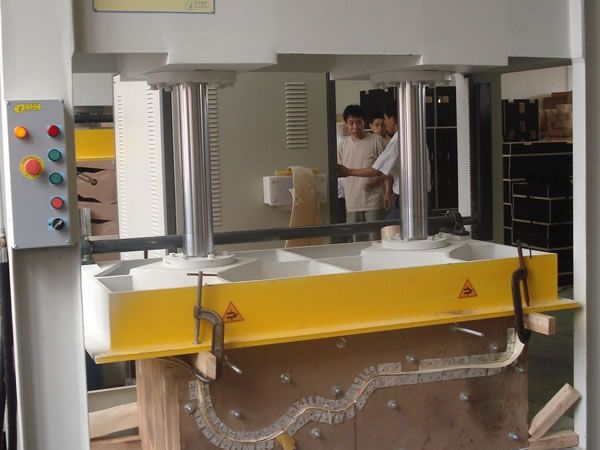

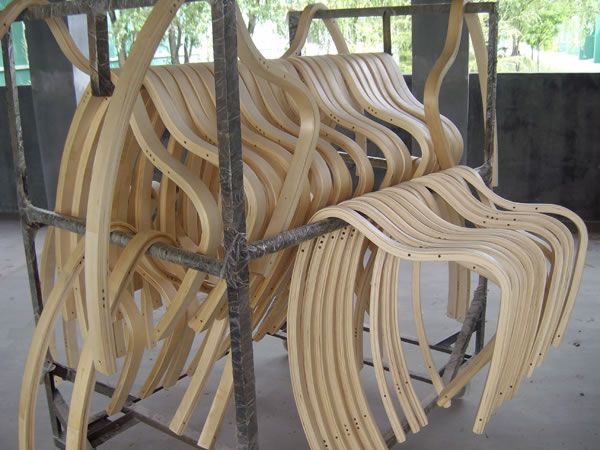

1. Plywood Chair
Model GJQ-PII-1206-JY GJQ-PII-1508-JY GJQ-PII-1206D-JY GJQ-PII-1508D-JY
Main voltage 3 phase, 380V, 50Hz or customized
Output power 20KW 20KW 20KW 20KW
Working table size 1200×600mm 1500×800mm 1200×600mm 1500×800mm
All working table sizes can be customized
Pressure 60T 80T 120T 160T
Output type Two sets of RF press share one RF generator (shift to work)

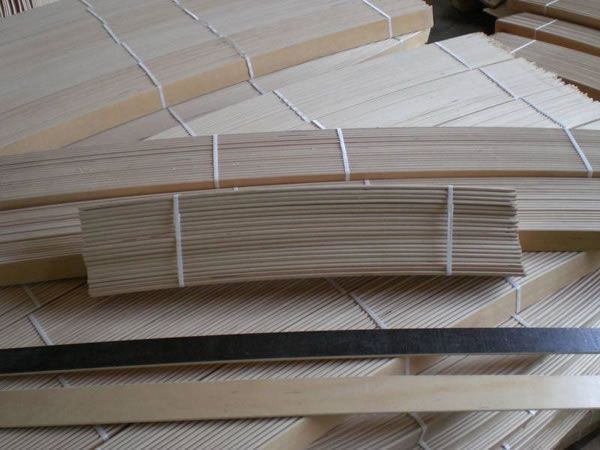

2. Bed Slats
Model GJQ-PII-1608-JY GJQ-PII-2010-JY
Main voltage 3 phase 380V, 50Hz or customized
Output power 20KW 30KW
Working table size 1600×800mm 2000×1000mm
All working table sizes can be customized
Pressure 100T 120T
Output type Two sets of radio frequency press share one RF generator (shift to work)
3. Musical Instrument
Model GJQ-PII-1608-JY GJQ-PII-2010-JY GJQ-PII-1608D-JY GJQ-PII-2010D-JY
Main voltage 3 phase 380V, 50Hz or customized
Output power 20KW 30KW 20KW 30KW
Working table size 1600×800mm 2000×1000mm 1600×800mm 2000×1000mm
All working table sizes can be customized
Pressure 100 T 120T 160T 160T
Output type Two sets of RF press share one RF generator (shift to work)

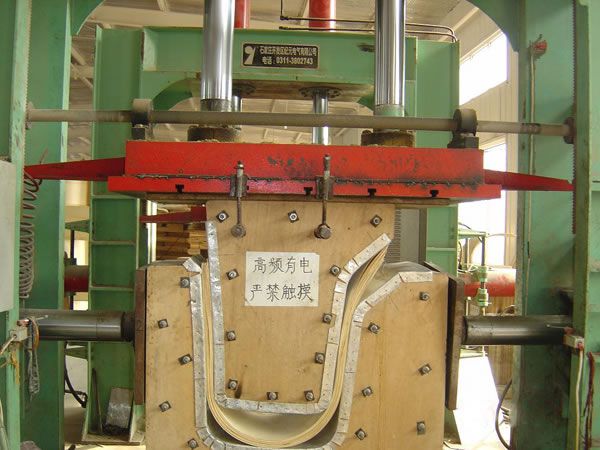

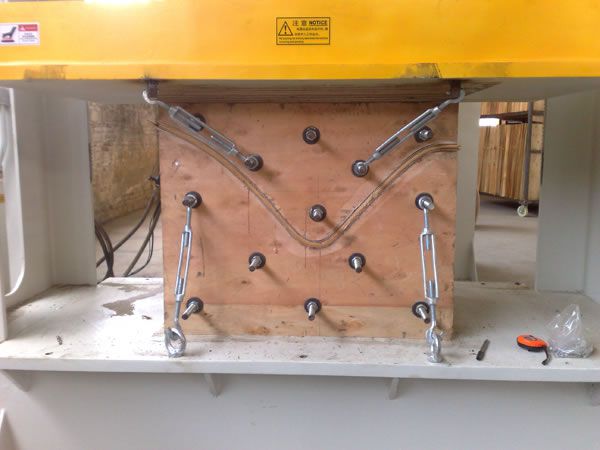

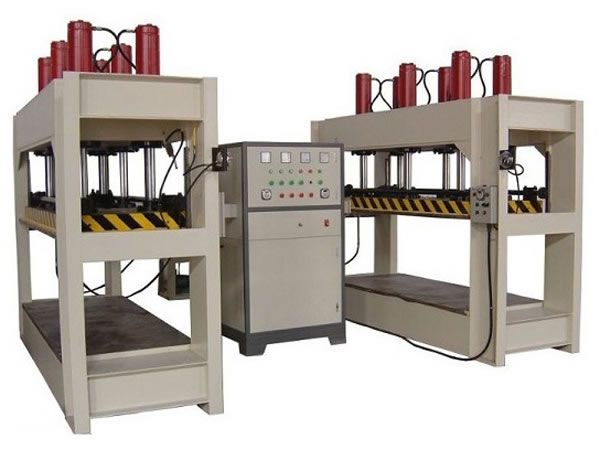

4. Three Direction Pressure
Model GJQW-PII-1608-JY GJQW-PII-1507-JY GJQW-PII-1608D-JY
Main voltage 3 phase 380V, 50Hz or customized
Output power 20KW-30KW
Working table size 1600×800mm 1500×700mm 1600×800mm
All working table sizes can be customized
Vertical pressure 100T 80T 100
Horizontal pressure 8T ×2 30T × 2 30T × 2
Total pressure 116T 140T 160T
Output type Two sets of RF press share one RF generator (shift to work)

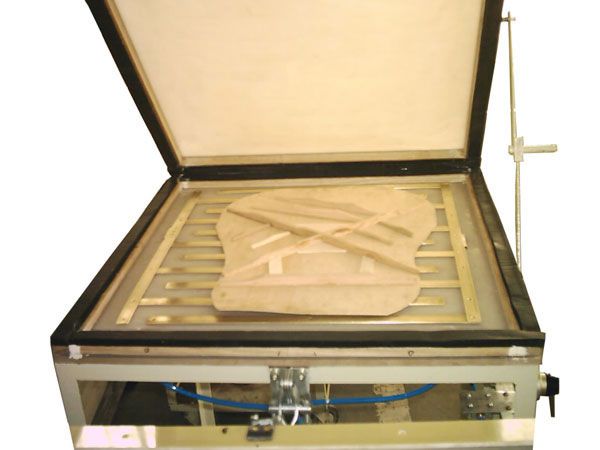

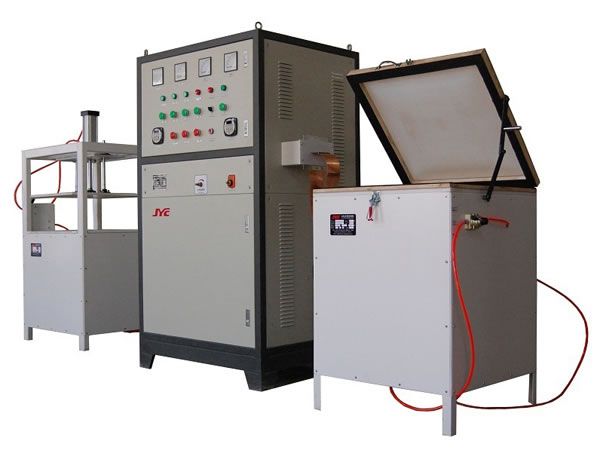

5. Guitar
Model GJ15-II-G-JY
Power supply AC 380V, 50Hz, 3 phases, 4 wires or customized
Output power 15KW
Heating time 10-20 seconds
Frequency 6.78Mhz
Output type Two sets of radio frequency press share one RF generator (shift to work)
Total weight 1.5T

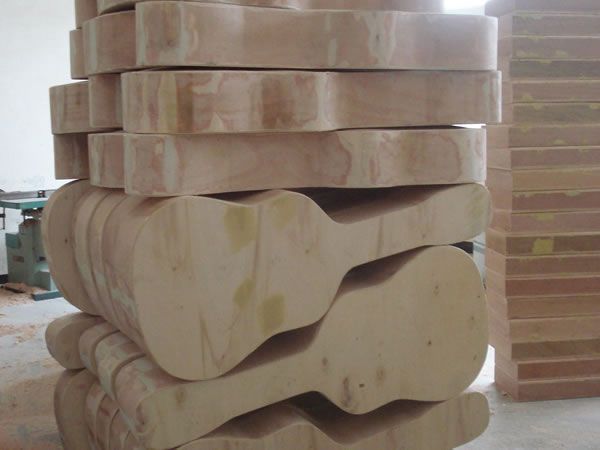

Note: Our curved plywood press can be used in the field of musical instrument manufacturing. For example, it can be used for wood bending works of guitar, piano, loudspeaker box, etc. In particular, it can be used for bonding of guitar soundboard, upper and lower face, etc.

6. Bed Head
Model GJQ-PII-2010-JY GJQ-PII-2513-JY GJQ-PII-2513D-JY
Main voltage 3 phase 380V, 50Hz or customized
Output power 30KW-50KW
Working table size 2000×1000mm 2500×1300mm 2500×1300mm
All working table sizes can be customized
Pressure 120T 150T 240T
Output type Two sets of RF press share one RF generator (shift to work)
