Home » Products » Radio Frequency Press / RF Edge Gluer

Radio Frequency Press / RF Edge Gluer

    1. RF Press Edge Gluer of Standard VersionControl type: PLC automatically control, fault self-checking, showing and alarm system
      HF power: 20KW /30KW, 6.78MHz
      Worktable size: 2500×1250 mm
      HF power: 30KW ---50KW, 6.78MHz
    1. RF Press Edge Gluer of Heavy Duty VersionControl type: PLC automatically control, fault self-checking, showing and alarm system
      Thickness: Thickness ≤ 100mm, Thickness ≤ 150mm
      Total pressure: 59T, 79T, 65T, 167T
    1. RF Press Edge Gluer for Jointing Extra-Long BoardsThis particular RF press was designed by Jiyuan specifically for joining long wooden boards such as container flooring and truck box boards together. The joining length of this wood joining machine can reach up to 12 meters, even infinite length.

The continuous edge gluer or RF edge gluer is a kind of radio frequency press designed for edge gluing and laminating during woodworking process. It is a type of commonly used woodworking machinery that apply high frequency heating technology to the production of finger jointed and laminated boards, as well as solid wood edge banding.

Characteristics of the Radio Frequency Press for Edge Gluing
1. High radio frequency heats the glue at a molecular level, selectively heating the wetter areas within the machine itself, allowing the glue to cure rapidly. After heating, only the glue line is hot, rather than the entire panel, ensuring a higher efficiency and energy conservation.
2. The radio frequency press uses a world class hydraulic system in order to press the finger jointed or glued edge of the board in two different directions. The RF gluer uses a large pressure force, enabling the processed board to be as flat as possible, while only needing a small amount of sanding.
3. Wood paneling produced by the radio frequency press does not need to be maintained, improving production efficiency and increasing output.

Jiyuan offers a wide range of radio frequency presses that are widely used for gluing laminated wood, door seals, L-shaped door casing, door panels, chipboard, and MDF.

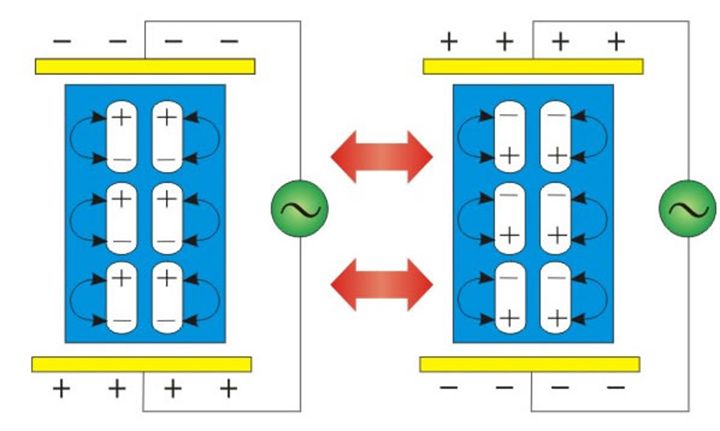

Chart for radio frequency heating principle

Requirements for wood: Moisture content 8-12%
Glue: water based glue
