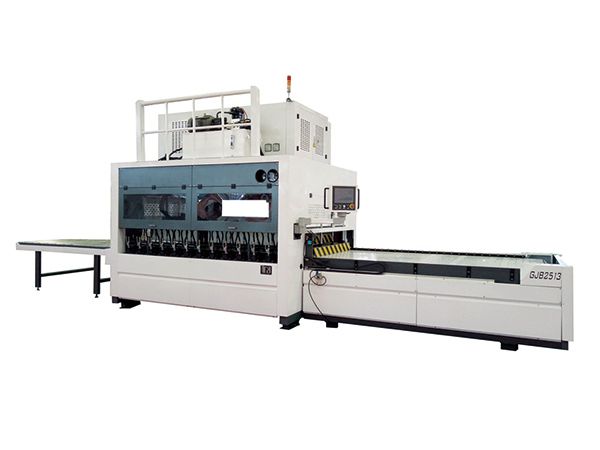

RF Press Edge Gluer of Standard Version

The standard version RF press or radio frequency press Jiyuan produces not only has the advantages associated with radio frequency edge gluers in general, but it also has many unique characteristics due to its special design. This RF press can perform a variety of tasks, including being able to function as a solid wood edge banding machine, wood laminating machine and a wooden frame jointing machine.

Technical Parameters of the RF Press

Model GJB-PI-20A-JY GJB-PII-27LA-JY GJB-PI-45A-JY GJB-PI-58A-JY
Control type PLC automatically control, fault self-checking, showing and alarm system
HF power 20KW /30KW, 6.78MHz
Worktable size 2500×1250 mm
Thickness Thickness≤20mm Thickness≤50mm Thickness≤80mm Thickness≤150mm
Total pressure 20T
Vertical: 6T
Horizontal: 14T
27T
Vertical: 6T
Horizontal: 21T
45T
Vertical: 9T
Horizontal: 36T
58T
Vertical: 10T
Horizontal: 48T
Functions 1) Finger jointed board gluing;
2) Door pocket sealing;
3) Batten sealing;
4) L type door pocket joining
Model GJB-PIV-40A-JY GJB-PIX-48A-JY GJB-PX-62A-JY GJB-PX-71A-JY
Control type PLC automatically control, fault self-checking, showing and alarm system
HF power 30KW ---50KW, 6.78MHz
Worktable size 3000×1250mm 4500×1250mm 5200×1250mm 6200×1250mm
Thickness Thickness≤60mm Thickness≤50mm Thickness≤60mm Thickness≤50mm
Total pressure 40T 48T 62T 71T
Functions 1) Finger jointed board gluing;
2) Door pocket sealing;
3) Batten sealing;
4) L type door pocket joining

General Features of the RF Press
1. The radio frequency heats only the glue line, making the radio frequency gluer efficient, fast and energy saving. The RF edge gluer can complete the gluing of one panel in as little as 3 minutes at a rate of 0.5-1.0kWh. (This rate is taken based on panels 2440x1220 mm wide and 20-30mm thick).
2. Finished wood panels processed by this RF press retain flat states, keeping material usage low.
3. The glue used in our RF press can also be used in different ways because it is water based.
4. The high radio frequency can kill insect and bacteria, making it environmentally friendly.

Superior Designs
1. This HF edge gluer adopts a PLC automatic control system which allows for automatic feeding and convenient loading and unloading.
2. Its outstanding high frequency structural design is more efficient and saves energy.
3. Its complete security protective system prevents overheating, over currents, sparks and wind pressure, and offers photoelectric protection and door switch protection, which ensures a safer operation.
4. High radio frequency our RF press produce are all in compliance with the regulations for electromagnetic radiation protection and has been approved by all necessary departments. This means our employees are working in a safe environment.

Parts Figure

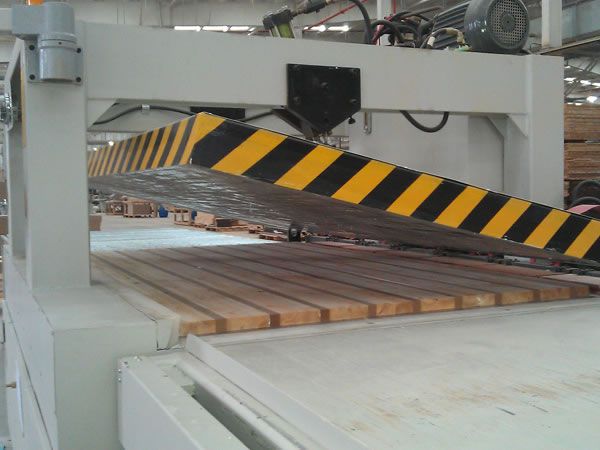

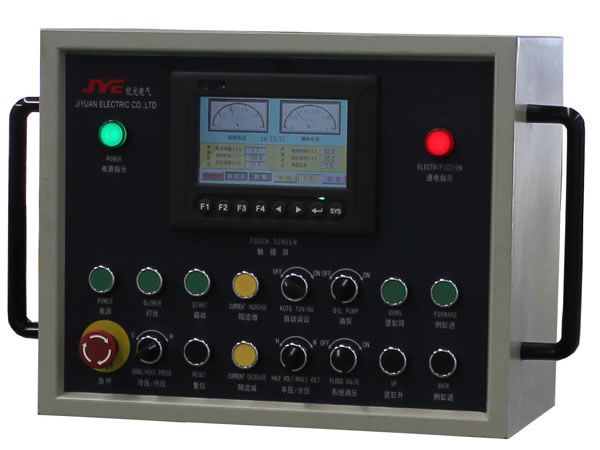

  • Humanized flexible operation head

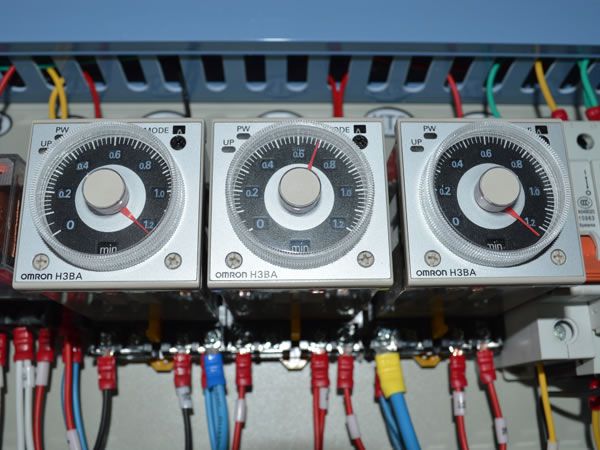

  • OMRON brand relay

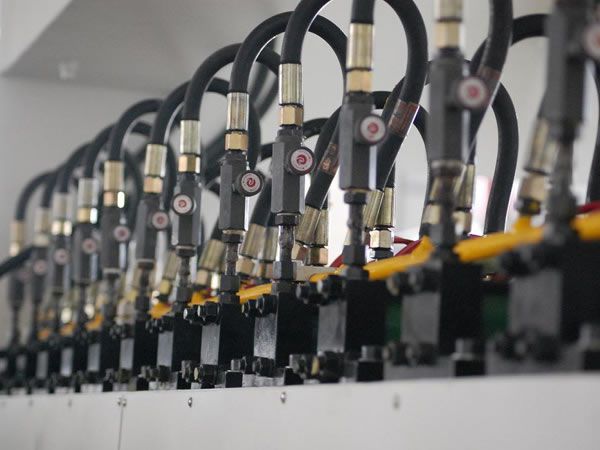

  • Excellent hydraulic system

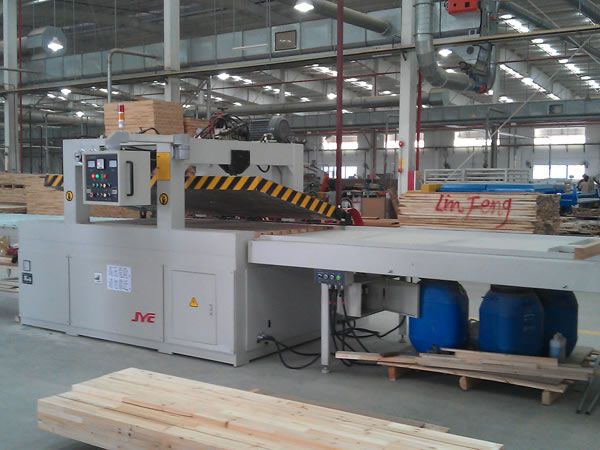

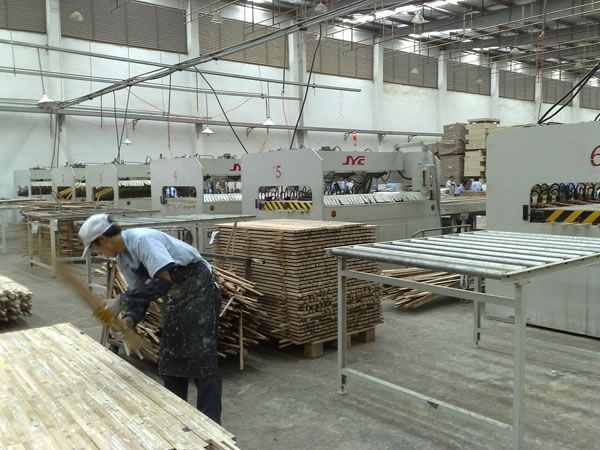

Application

  • Door edge banding

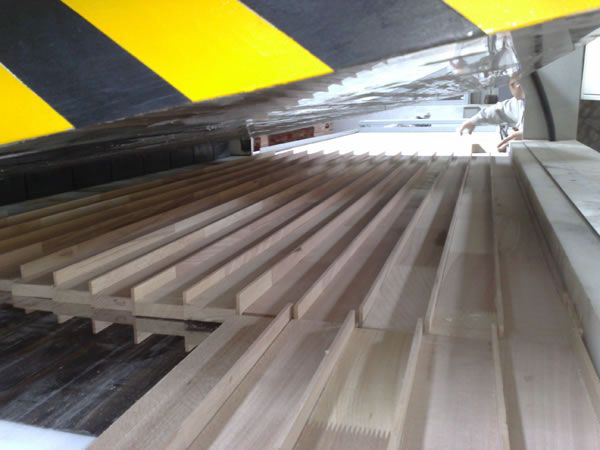

  • Finger joint board making
  • L type door pocket gluing
